GENERAL FEATURES

SAFE AND RELIABILITY

Using the polymer gas filter, can limit the external spark safely and reliably.

LONG SERVICE LIFE

Using the advanced COS welding technology, make the battery have low electric resistance and reliable starting power,which makes the service life longer.

 HIGH DISCHARGE RATE

Excellent electric performance (High CCA self-discharge)

DURABILITY

Using the special active material to slow the decay of the capacity.

        HIGH STANDARD DESIGN

Capacity design meets various standards and specifications to ensure adequate energy supply for the battery.

MAINTENANCE FREE

The maintenance free battery boasts outstanding service performance and over discharge recovery ability.

Specification

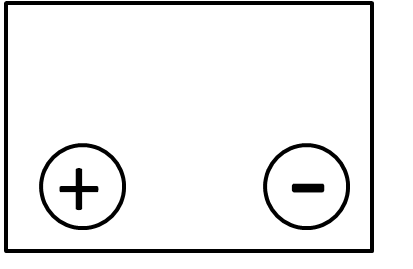

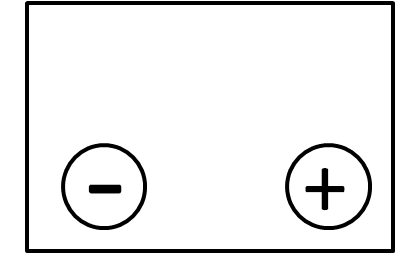

Model Dimension(MM) Voltage(V) Rated Capacity(AH) Terminal Layout PDF
Length Width Height Total height
DIN45 MF 245 175 175 175 12 45 DIN45
DIN55 MF 245 175 190 190 12 55 DIN55
DIN60 MF 245 175 190 190 12 60 DIN60
DIN66 MF 278 175 175 175 12 66 DIN66
DIN72 MF 278 175 190 190 12 72 DIN72
DIN75 MF 278 175 190 190 12 75 DIN75
DIN80 MF 278 175 190 190 12 80 DIN80
DIN80R MF 278 175 190 190 12 80 DIN80R
DIN88 MF 352 175 190 190 12 88 DIN88
DIN95 MF 352 175 190 190 12 95 DIN95
DIN95R MF 352 175 190 190 12 95 DIN95R
DIN100 MF 352 175 190 190 12 100 DIN100
