GENERAL FEATURES

SAFE AND RELIABILITY

Using the polymer gas filter, can limit the external spark safely and reliably.

LONG SERVICE LIFE

Using the advanced COS welding technology, make the battery have low electric resistance and reliable starting power,which makes the service life longer.

 HIGH DISCHARGE RATE

Excellent electric performance (High CCA self-discharge)

DURABILITY

Using the special active material to slow the decay of the capacity.

        HIGH STANDARD DESIGN

Capacity design meets various standards and specifications to ensure adequate energy supply for the battery.

MAINTENANCE FREE

The maintenance free battery boasts outstanding service performance and over discharge recovery ability.

Specification

Model Dimension(MM) Voltage(V) Rated

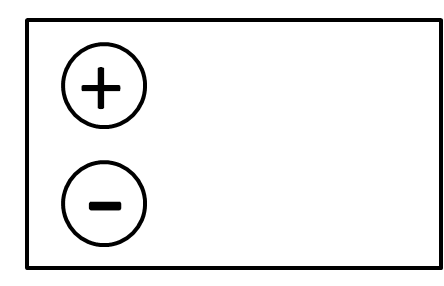

Capacity(AH)		 Terminal
Layout		 PDF
Length Width Height Total
height
N32 MF 198 130 200 225 12 32 N32
N36 MF 198 130 200 225 12 36 N36
N40 MF 240 130 200 225 12 40 N40
N45 MF 240 130 200 225 12 45 N45
N50 MF 260 170 200 225 12 50 N50
N60 MF 260 170 200 225 12 60 N60
N65 MF 260 170 200 225 12 65 N65
N75 MF 260 170 200 226 12 75 N75
N80 MF 305 170 205 225 12 80 N80
N100 MF 404 171 199 219 12 100 N100
N120 MF 505 180 210 230 12 120 N120
N150 MF 505 220 210 230 12 150 N150
N180 MF 505 265 210 230 12 180 N180
N200 MF 515 265 210 230 12 200 N200
